More about this product
Electrically actuated valves with powerful closing spring provide closure in less than 1 second for reliable, long-life operation. All shut off valves are designed to return to normal position instantly with any interruption in the electric power supplied through your safety circuit.
Details:

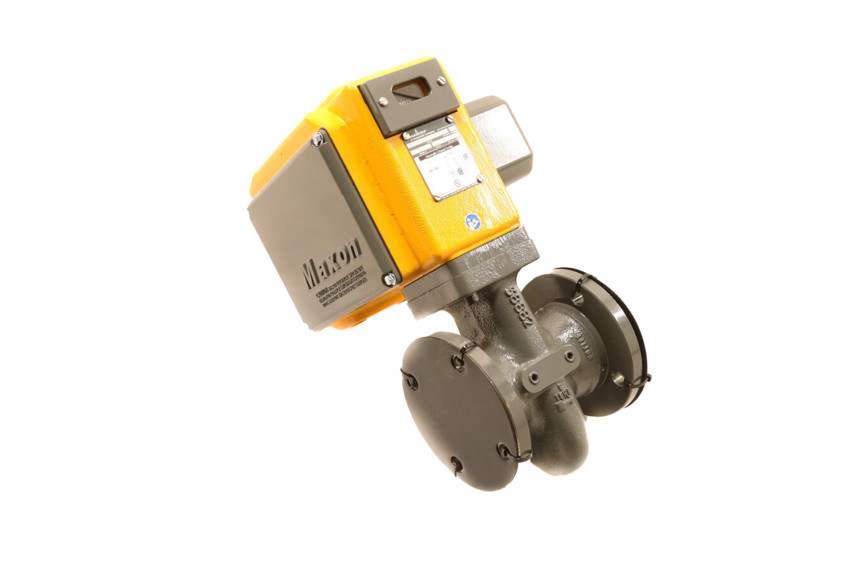

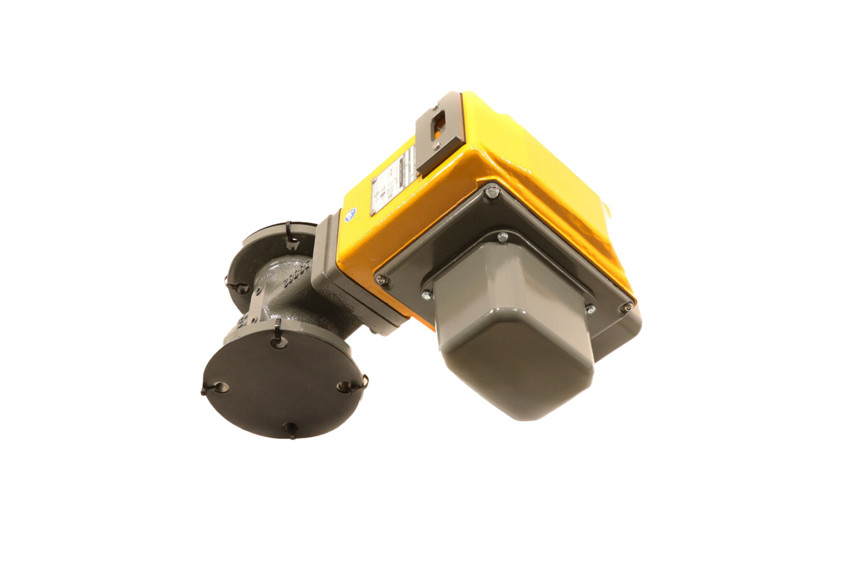

- MAXON automatic (motorized) valve
- 2-1/2" ANSI flanged ports
- CP port flow capacity
- Normally closed shut-off valve
- General purpose classification
- Buna O-ring seals / Buna bumper
- Cast iron construction with internal trim package #1
- 115VAC 60 Hz solenoid voltage
- 115VAC 60 Hz motor voltage
- 6 second motor timing
- VOS2/VCS2 automatic valves
- NEMA 4 rated
- Visual position indication
- Easily integrates with an analog control system, DCS or PLC
- Ambient and gas temperature range: -20°F to 140°F
- Part #: 250CMA11-BA11-BB22A0
-
