Magnatrol 36LR47 Solenoid Valve - 2", 0/100 PSI, Normally Open, Full Port (120V)

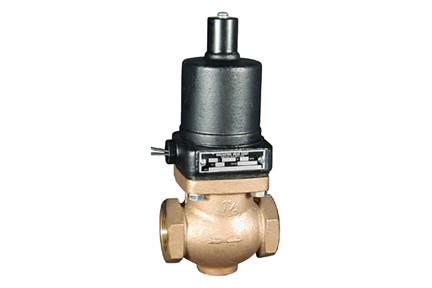

Type "LR" Normally Open Solenoid Valve
$1611.32
SKU: 36LR47
Email a co-worker

More about this product

The Magnatrol 36LR47 is a normally open solenoid valve with 2" NPT connections and 100 PSI max differential. It closes when energized and opens when de-energized.

Applications include controlling the flow of hot liquids, hot gases, cryogenics, and any other fluids not reactive with the construction materials and free of sediment.

Details:

  • Normally open
  • Bronze construction
  • 2" inlet and outlet
  • 100 PSI max differential
  • 45 Watts AC
  • 1.0 Amp hold (120-60)
  • 4.2 Amp inrush (120-60)
  • 23 Watts DC
  • Max fluid temperature: 400° F
  • No differential pressure required to open
