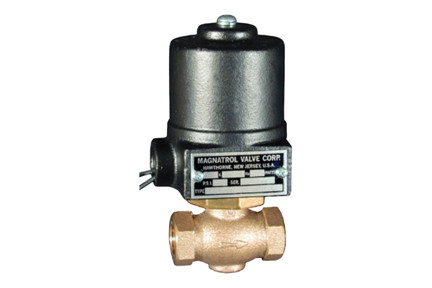

Magnatrol 33N33 Solenoid Valve - 3/4", 0/75 PSI, Normally Closed, Reduced Port (120V)

Type "N" Normally Closed Solenoid Valve
$410.95
SKU: 33N33
Email a co-worker

More about this product

The Magnatrol 33N33 is a normally closed solenoid valve with 3/4" NPT connections and 75 PSI max differential. It opens when energized and closes when de-energized.

Applications include controlling the flow of water, oil, air, gas, solvents, brine, vacuum, and any other fluids not reactive with the construstion materials and free of sediment.

Details:

  • Normally closed
  • Bronze construction
  • 3/4" inlet and outlet
  • 75 PSI max differential
  • 5/16" valve port
  • 45 Watts AC
  • 0.8 Amp hold (120-60)
  • 2.5 Amp inrush (120-60)
  • 23 Watts DC
  • Max fluid temperature: 212° F
  • No differential pressure required to open
