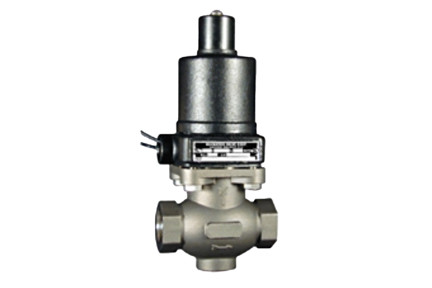

      Magnatrol 29KR52 Solenoid Valve - 1/2", 0/300 PSI, Normally Open, Full Port (120V)

      Type "KR" Normally Open Solenoid Valve
      $1032.37
      SKU: 29KR52
      Email a co-worker

      More about this product

      The Magnatrol 29KR52 is a normally open solenoid valve with 1/2" NPT connections and 300 PSI max differential. It closes when energized and opens when de-energized.

      Applications include controlling the flow of corrosive fluids, deionized water, condensate, ammonias, vegetable oils, fuel oils, cryogenics, and flammable liquids.

      Details:

      • Normally open
      • Stainless steel construction
      • 1/2" inlet and outlet
      • 300 PSI max differential
      • 45 Watts AC
      • 1.0 Amp hold (120-60)
      • 2.7 Amp inrush (120-60)
      • 23 Watts DC
      • Max fluid temperature: 400° F
      • No differential pressure required to open
