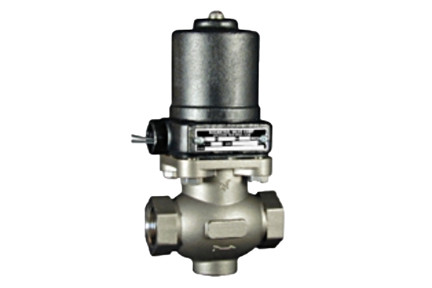

Magnatrol 14K42 Solenoid Valve - 1/2", 0/110 PSI, Normally Closed, Full Port (120V)

The Magnatrol 15K42 is a normally closed solenoid valve with 1/2" NPT connections and 110 PSI max differential. It opens when energized and closes when de-energized.

Applications include controlling the flow of corrosive fluids, deionized water, condensate, ammonias, vegetable oils, fuel oils, cryogenics, and flammable liquids.

Details:

• Normally closed
• Stainless steel construction
• 1/2" inlet and outlet
• 110 PSI max differential
• 25 Watts AC
• 0.4 Amp hold (120-60)
• 1.2 Amp inrush (120-60)
• 18 Watts DC
• Max fluid temperature: 400° F
• No differential pressure required to open
