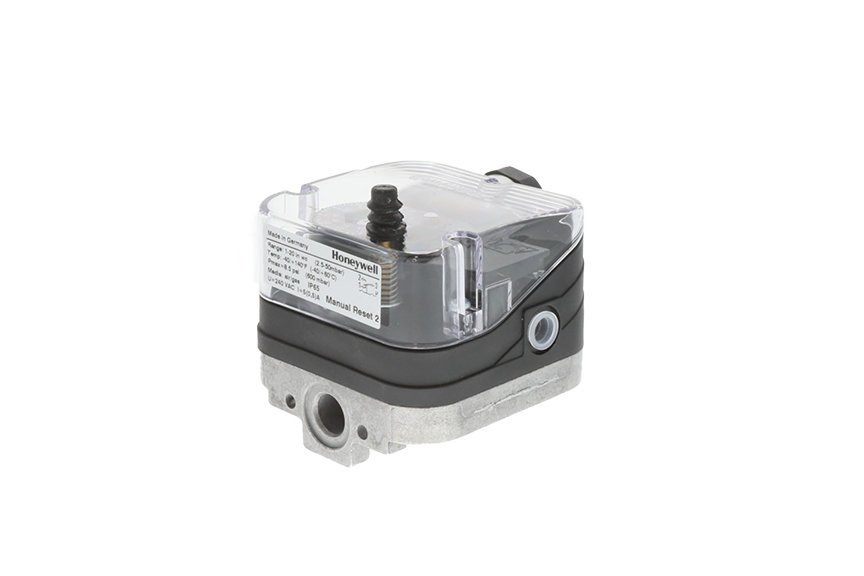

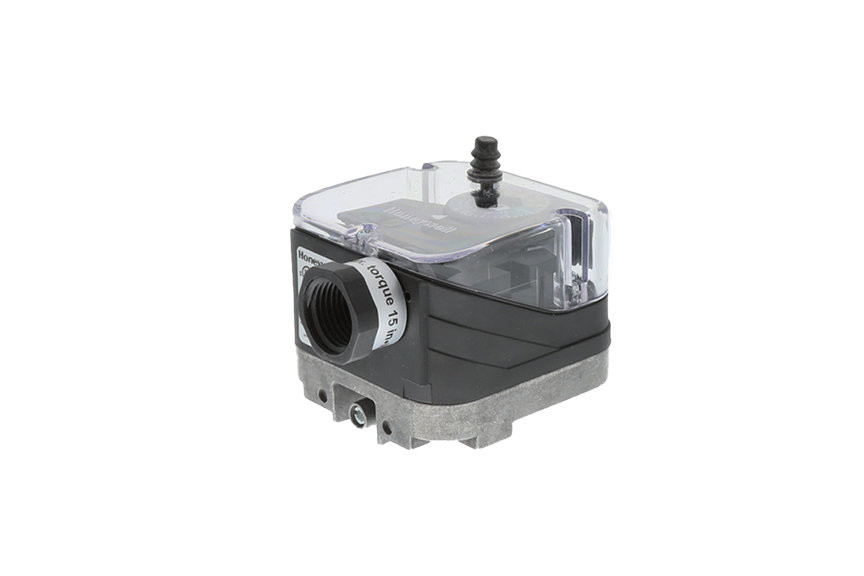

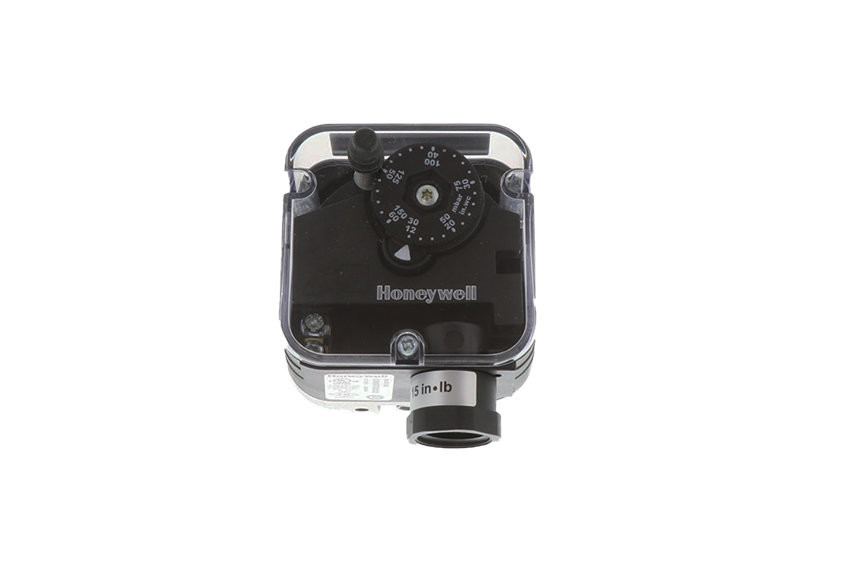

Honeywell High Gas Pressure Switch 1.5 - 7 PSI Break on Rise Manual Reset

Email a co-worker

For use with natural gas, liquid propane (LP) gas, or air.
C6097B models break control circuit at setpoint on pressure rise
Equipped with manual reset switch
NC-to-COM connection is interrupted if the pressure rises
Switching point adjustment via setting dial
Switch can be wired to turn on alarm
Diaphragm-actuated safety-limit switch
Removable transparent cover protects scale plate and adjusting knob
Surge orifice equipped to dampens sudden pressure fluctuations, preventing false tripping, ensure stable switch operation, and protect internal components
Pipe tappings allow selection of positive pressure, differential pressure (air only) or venting connections (NPT mount only)
Positive pressure: Gas, biogas, air, flue gas
Negative/differential pressure: Air, flue gas
IP54 enclosure standard
Integral Vent Limiter
8.5 psi maximum inlet pressure with venting line (7 psi without)
Minimum Ambient Temperature: -40°F (-40°C)
Maximum Ambient Temperature: 140°F (60°C)
Scale Range: 40" - 200" W.C. (1.4 - 7.2 PSI)
1/4" NPT Mount
