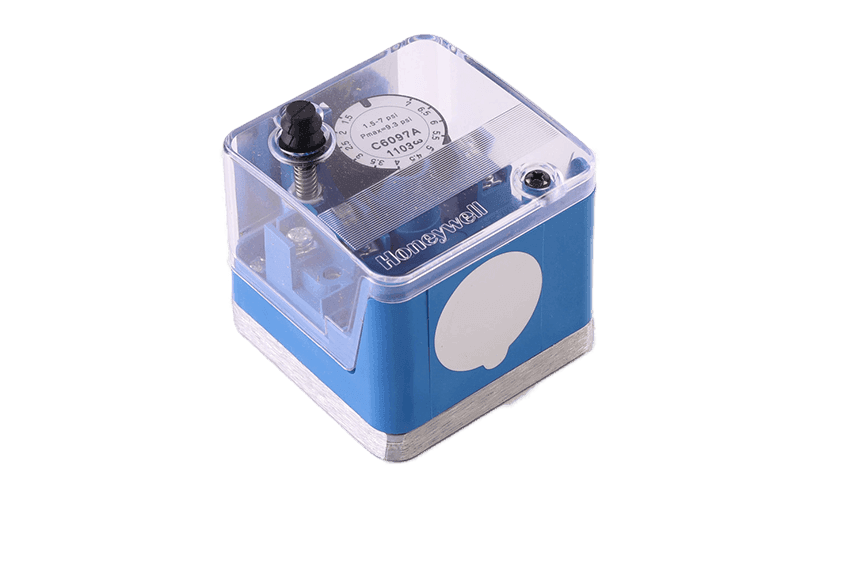

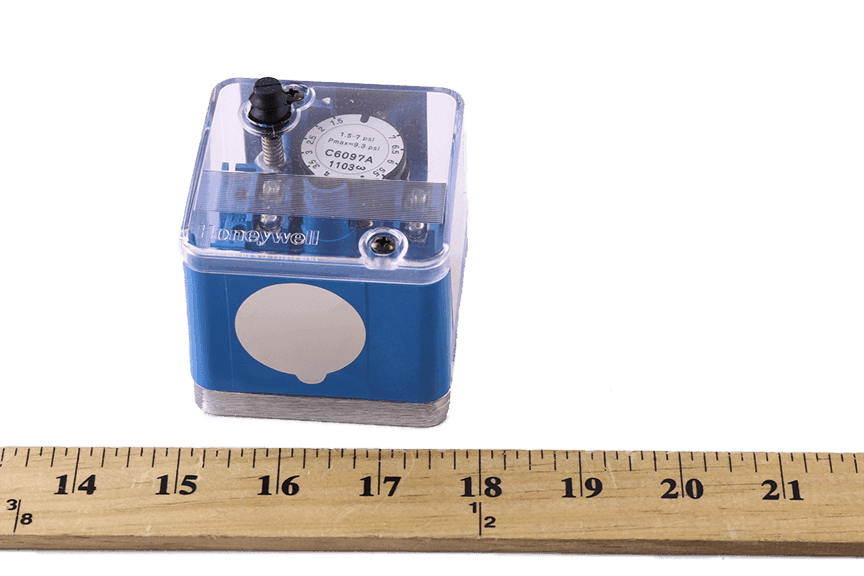

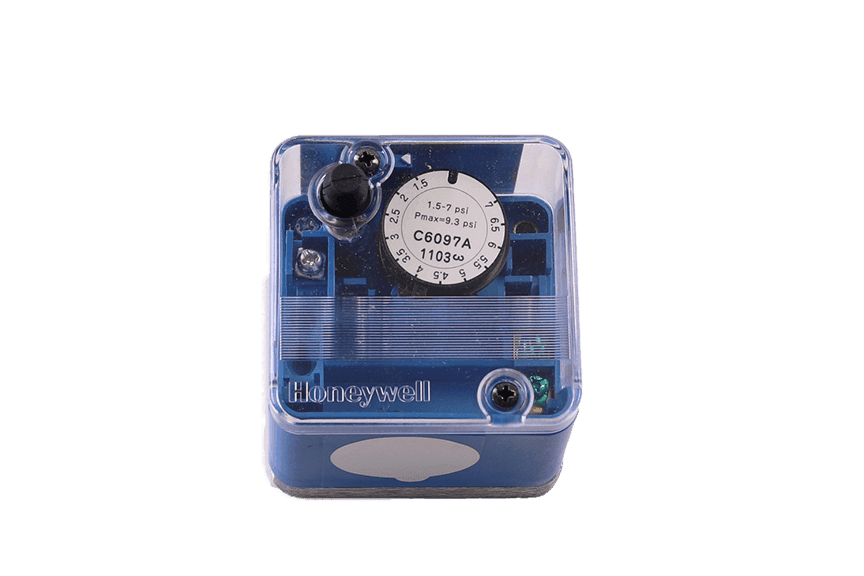

Honeywell Low Gas Pressure Switch 1.5 - 7 PSI Break on Fall Manual Reset Flange Mount

Details:

• For use with natural gas, liquid propane (LP) gas, or air.
• C6097A models break control circuit at setpoint on pressure fall
• Equipped with manual reset switch
• NO-to-COM connection is interrupted if the pressure drops
• Switching point adjustment via setting dial
• Switch can be wired to turn on alarm
• Diaphragm-actuated safety-limit switch
• Removable transparent cover protects scale plate and adjusting knob
• Surge orifice equipped to dampens sudden pressure fluctuations, preventing false tripping, ensure stable switch operation, and protect internal components
• Pipe tappings allow selection of positive pressure, differential pressure (air only) or venting connections (NPT mount only)
• Positive pressure: Gas, biogas, air, flue gas
• Negative/differential pressure: Air, flue gas
• IP54 enclosure standard
• Integral Vent Limiter
• 8.5 psi maximum inlet pressure with venting line (7 psi without)
• Minimum Ambient Temperature: -40°F (-40°C)
• Maximum Ambient Temperature: 140°F (60°C)
• Scale Range: 40" - 200" W.C. (1.4 - 7.2 PSI)
• Flange Mount
