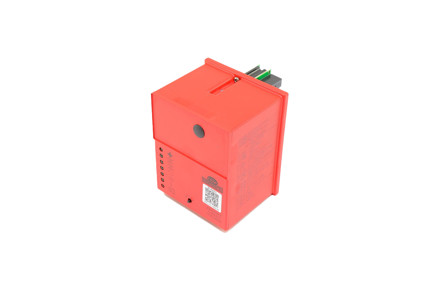

Fireye YB110IR - Chassis with IR Auto Check Amplifier (120V)

The Fireye BurnerLogix™ System is a microprocessor based burner management control system designed to provide the proper burner sequencing, ignition and flame monitoring protection on automatically ignited oil, gas, and combination fuel burners.

Details:

• A consistent flame signal read-out via display module or 4-20 mA output
• Read-out of main fuel operational hours and complete cycles via display module
• Modbus communications via RS485 multi-drop link
• Proof of fuel valve closure during off cycle
• Burn-in time of program parameters occurs after 8 hours of main valve on time
• A run/check switch which allows the operator to stop the program sequence in any of four different positions (Purge, PTFI, MTFI or Auto)
• Remote Display mounting with NEMA 4 protection
• Remote Reset
• Revert to pilot can increase burner turn down
• Temperature range: -40° to 140° F (-40° to 60° C)
