Fireye Amplifier Module UV .2/4 SEC FFRT

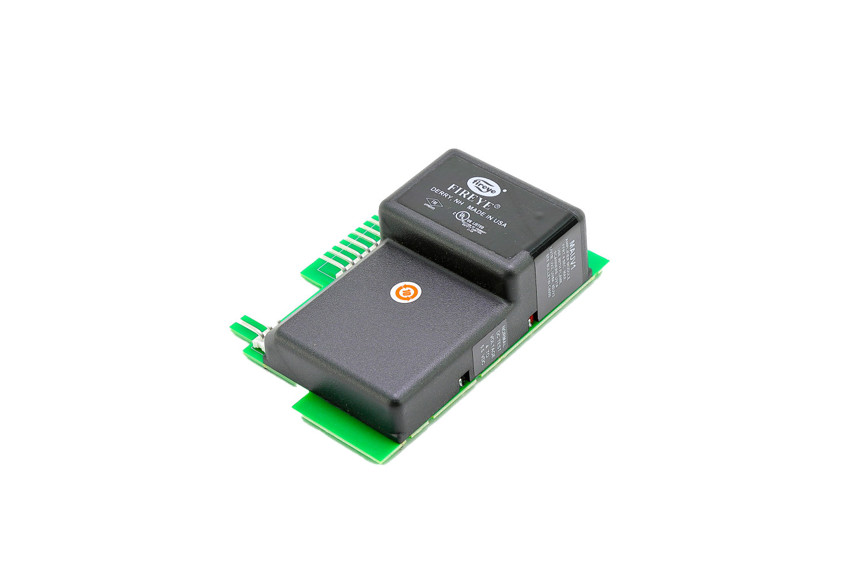

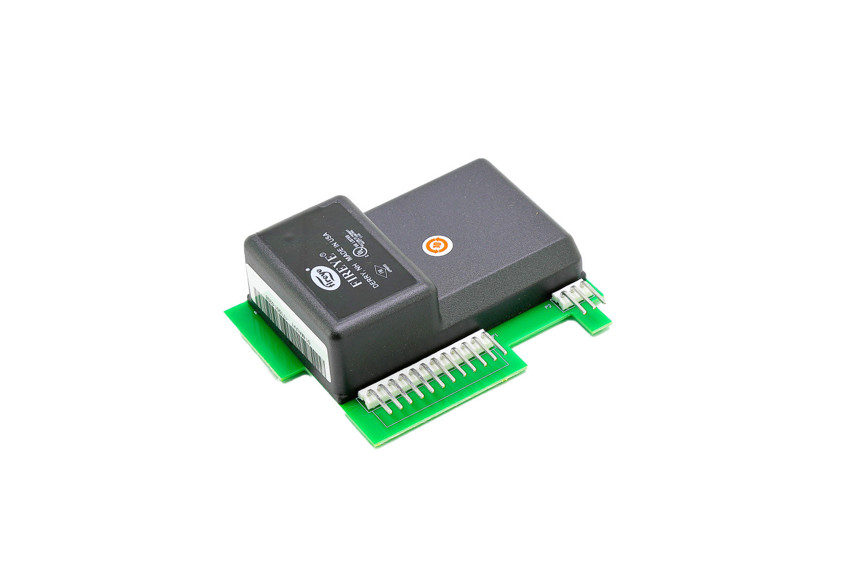

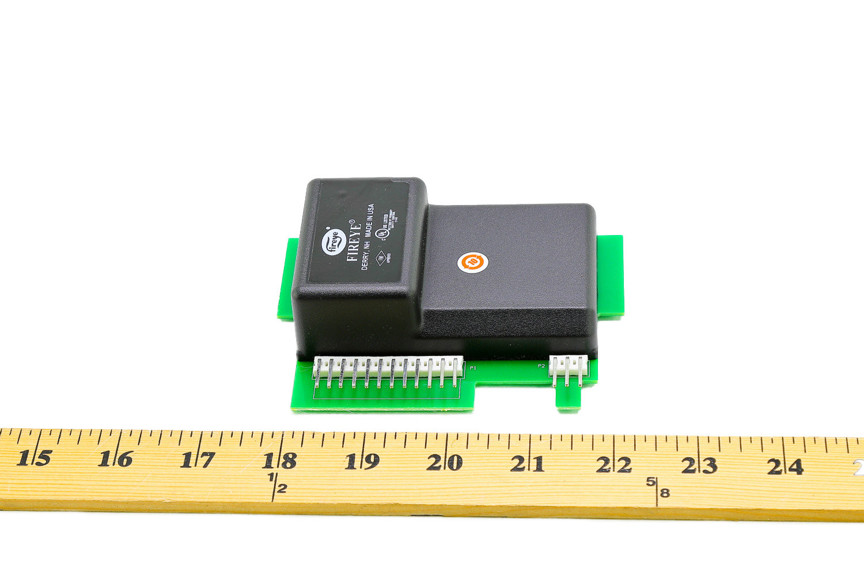

The Fireye MART1, MART3, MART1T, MAUV1, MAUV3 and MAUV1T are Amplifier Modules used with the Fireye Modular M-SERIES II control. These amplifier modules provide flame scanning capabilities using any of the Fireye standard ultraviolet scanners (self-check scanners not applicable) and flame rods. The Flame Failure Response Time (F.F.R.T.) of the control is determined by the selection of the amplifier module (see Ordering Information). Test jacks are provided on the amplifier modules to permit flame signal measurement during operation. After scanner selection, the proper amplifier module must be used in the Modular M-SERIES II chassis (see Ordering Information). The amplifier module incorporates a plug-in design for ease of installation. The programmer module determines the operational characteristics of the control (e.g. relight, purge timing, etc.). For proper and safe application of this product, you must refer to bulletins C-4000 or C-4000E for a detailed description of the operation of the Modular M-SERIES II control, including installation instructions, operating sequences for the programmer modules, etc. Also follow the scanner installation and wiring instructions found in bulletins C-4000 or C-4000E for proper flame scanning operation.
