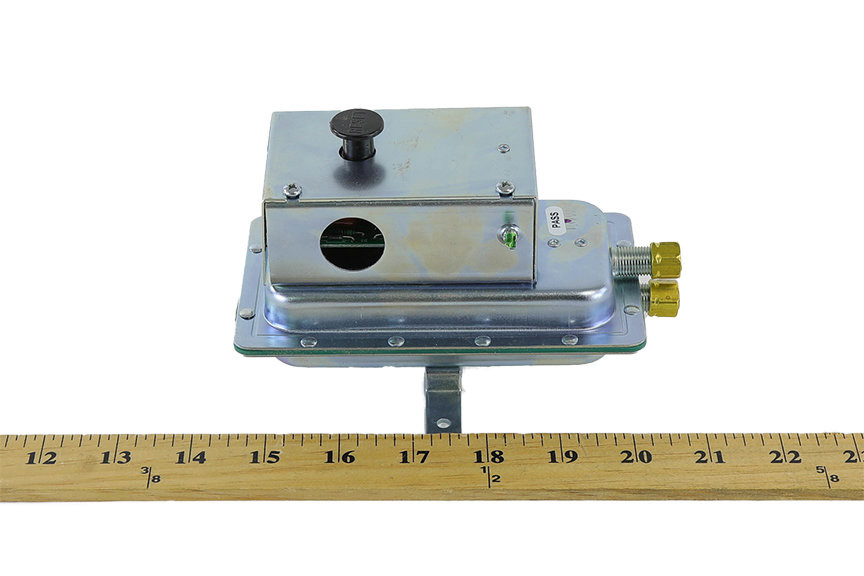

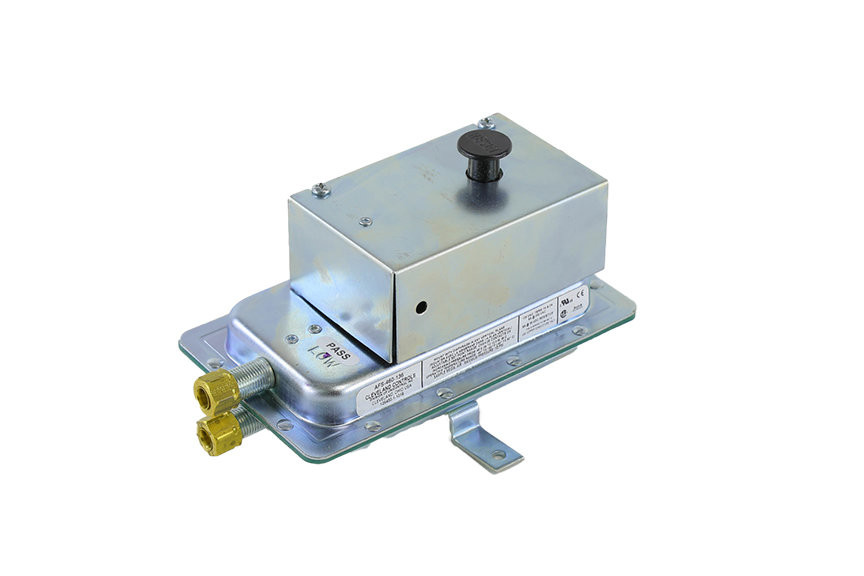

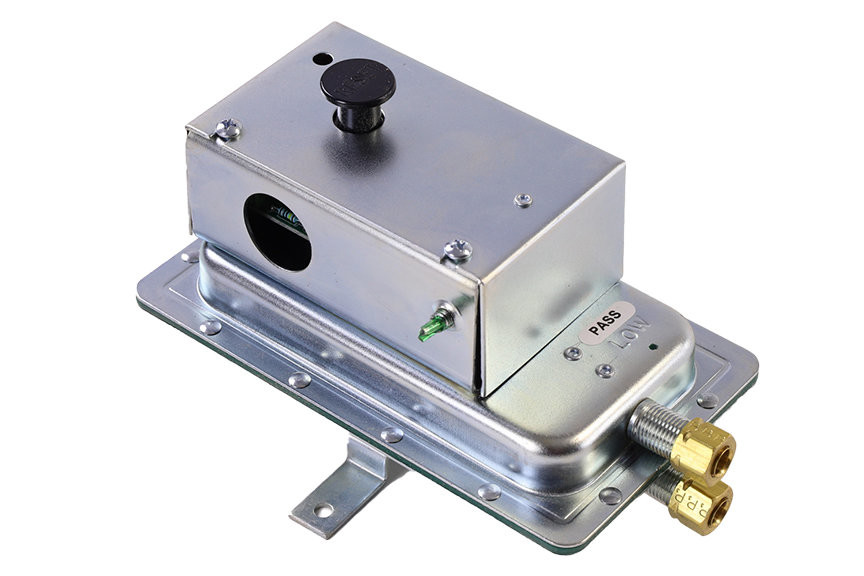

      DPDT Air Pressure Switch Adjustable 4"- 12" W.C. Manual Reset

      Cleveland AFS Air Pressure Switch
      $191.80
      SKU: AFS-460-136
      Email a co-worker

      More about this product

      Please Note: To precisely calibrate a Cleveland Controls air switch, a digital manometer is recommended to confirm set point at actual operating temperature.

      Details:

      • Snap-acting DPDT switch
      • Two ferrule and nut compression type connectors will accept .25" OD rigid tubing
      • Enclosure covered switch terminals
      • Set point range: 0.40 ± 0.06" - 12.0" W.C.
      • Standard foot bracket
      • Conduit Opening: one ⅞" diameter opening, accept ½" conduit
      • Maximum Pressure: ½ psi (0.03 bar).
      • Operating Temperature Range: -40 ºF to 180 ºF (-40 ºC to 82 ºC).
      • 100,000 cycle minimum lifespan at ½ psi maximum pressure each cycle and at maximum rated electrical load.
