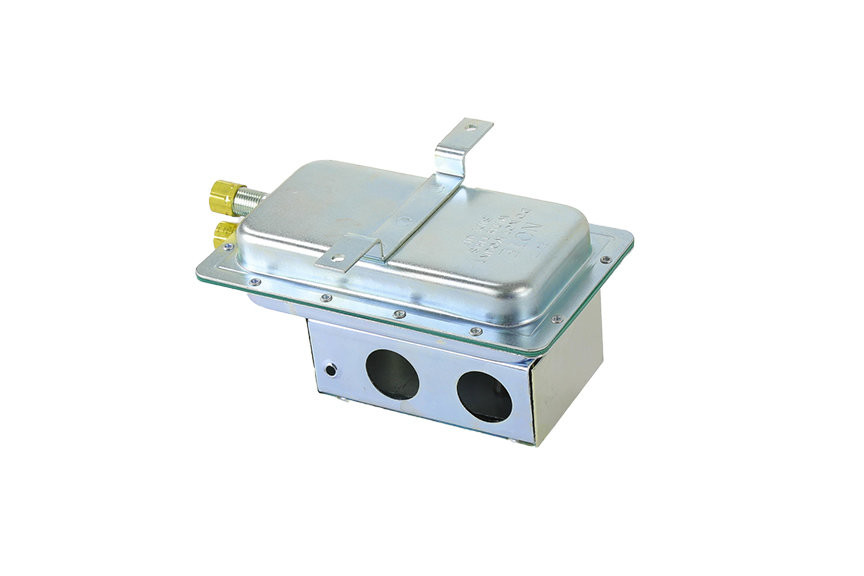

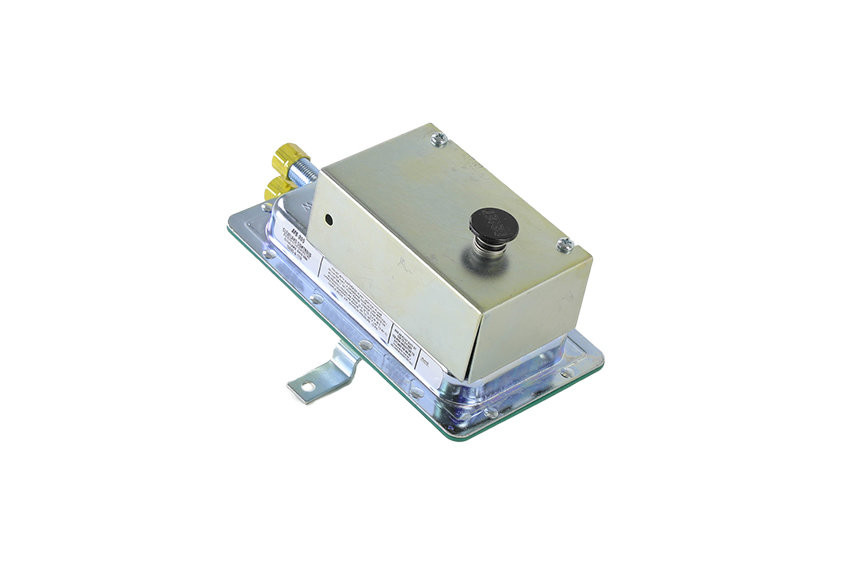

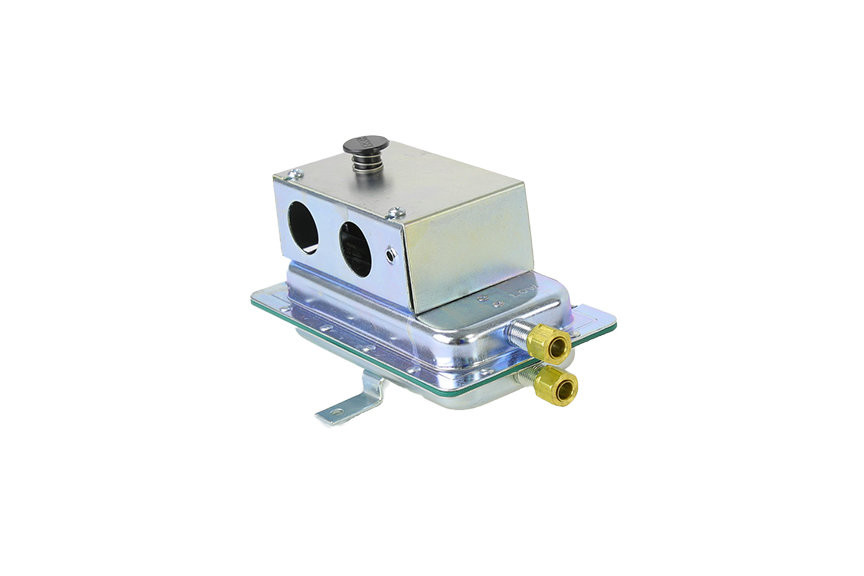

SPDT Air Pressure Switch Adjustable 0.3" - 12" W.C.

Please Note: To precisely calibrate a Cleveland Controls air switch, a digital manometer is recommended to confirm set point at actual operating temperature.

Details:

• Snap-acting SPDT switch
• Equipped with manual reset switch
• Two male externally threaded 7/16" 24 UNS 2A thread sample line connections, complete with nuts and self-aligning ferrules
• Enclosure covered switch terminals
• Set point range: 0.25 ± 0.05" - 12.0" W.C.
• Field Adjustable “Operate Range” : 0.3" - 12.0" W.C.
• Standard foot bracket
• Conduit Opening: Two ⅞" diameter opening, accept ½" conduit
• Maximum Pressure: ½ psi (0.03 bar).
• Operating Temperature Range: -40 ºF to 180 ºF (-40 ºC to 82 ºC).
• 100,000 cycle minimum lifespan at ½ psi maximum pressure each cycle and at maximum rated electrical load.
