More about this product
Please Note: To precisely calibrate a Cleveland Controls air switch, a digital manometer is recommended to confirm set point at actual operating temperature.
Details:
- Snap-acting SPDT switch
- Two barbed ¼" connectors will accept flexible tubing
- Enclosure covered switch terminals
- Set point range: 0.05 ± 0.02" - 2.0" W.C.
- Field Adjustable “Operate Range” : 0.07" - 2.0" W.C.
- Field Adjustable “Release Range” : 0.04" - 1.9" W.C.
- Approximate Switching Differential: Progressive, increasing from 0.02 ± 0.01" W.C. at minimum set point to approximately 0.1 " W.C. at maximum set point
- Standard foot bracket

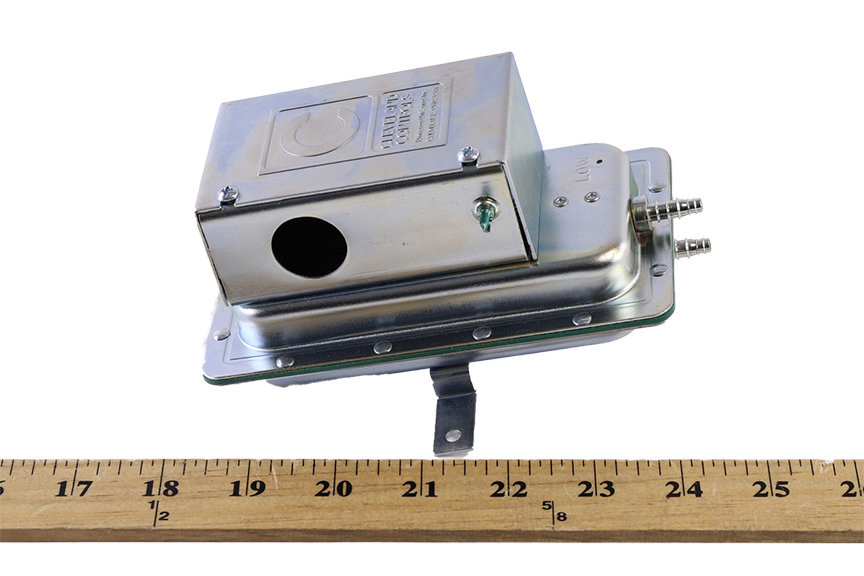

- Conduit Opening: one ⅞" diameter opening, accept ½" conduit
- Maximum Pressure: ½ psi (0.03 bar).
- Operating Temperature Range: -40 ºF to 180 ºF (-40 ºC to 82 ºC).
- 100,000 cycle minimum lifespan at ½ psi maximum pressure each cycle and at maximum rated electrical load.
-
