SPDT Air Pressure Switch Adjustable 0.02" - 12" W.C.

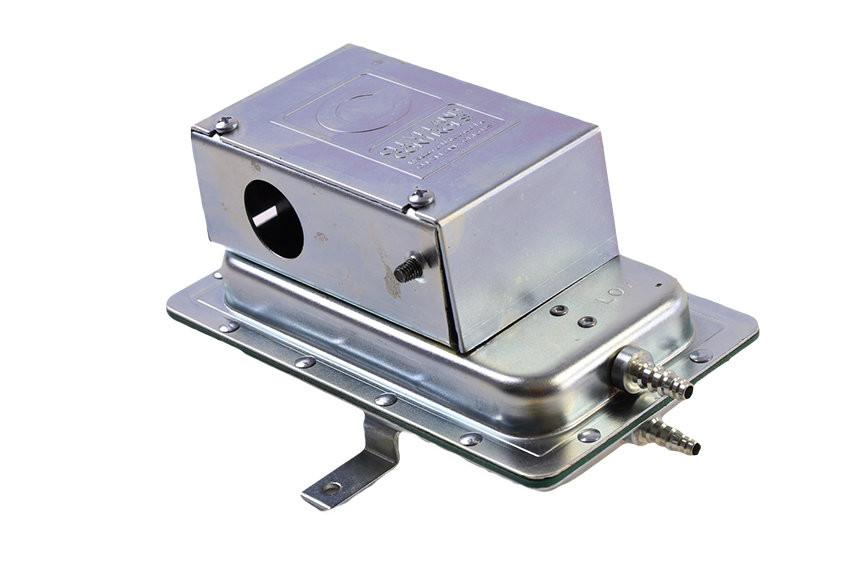

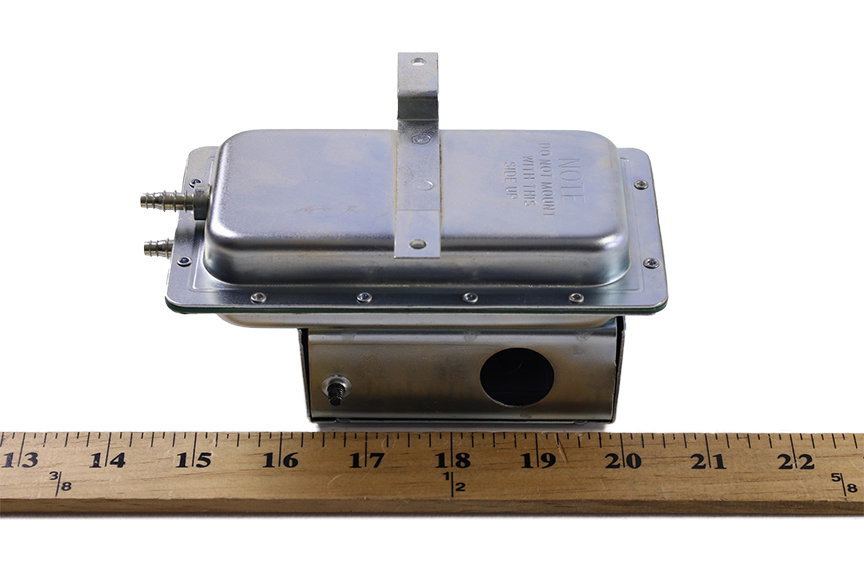

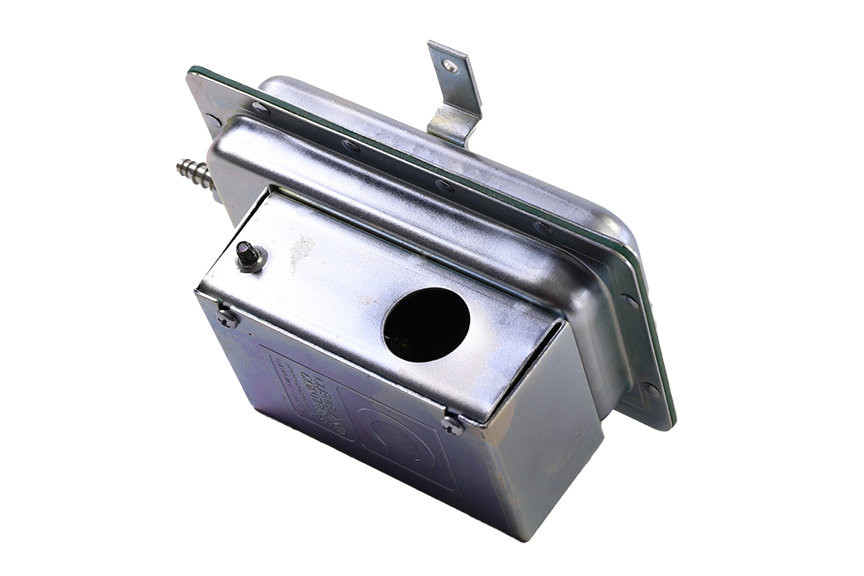

AFS-222-112 Air Pressure Sensing Switch is a general purpose proving switch designed for HVAC and Energy Management applications. It may be used to sense positive, negative, or differential air pressure. The AFS-222-112 is equipped with convenient barbed sample line connectors that accept flexible tubing. Set Point Range: 0.05 ± 0.02" - 12.0"W.C. Field Adjust

Please Note: To precisely calibrate a Cleveland Controls air switch, a digital manometer is recommended to confirm set point at actual operating temperature.

Details:

• Snap-acting SPDT switch
• Two barbed ¼" connectors will accept flexible tubing
• Enclosure covered switch terminals
• Set point range: 0.05 ± 0.02" - 12.0" W.C.
• Field Adjustable “Operate Range” : 0.07" - 12.0" W.C.
• Field Adjustable “Release Range” : 0.04" - 11.2" W.C.
• Approximate Switching Differential: Progressive, increasing from 0.02 ± 0.01" W.C at minimum set point to approximately 0.8 " W.C at maximum set point.
• Standard foot bracket
• Conduit Opening: one ⅞" diameter opening, accept ½" conduit
• Maximum Pressure: ½ psi (0.03 bar).
• Operating Temperature Range: -40 ºF to 180 ºF (-40 ºC to 82 ºC).
• 100,000 cycle minimum lifespan at ½ psi maximum pressure each cycle and at maximum rated electrical load.
