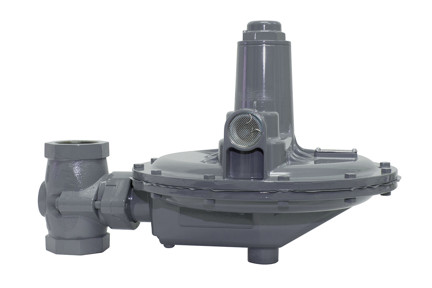

BelGas P202 Relieving Regulator - 1-1/4'' Ports, 1'' Orifice, 2-5 PSI

$707.90
SKU: P202H120050D1D0
Email a co-worker

More about this product

The P200 series pressure regulator is a manual, direct acting, self-operating, spring loaded, adjustable regulator. The P200 series is used in applications where pressure reduction is required. The regulator will reduce the risk of “shock” from abrupt changes of downstream conditions. This can help prevent safety equipment from shutting an operation down.

Details:

  • High pressure
  • 1-1/4" ports
  • 2-5 PSIG (137.89 - 344.73 mBar)
  • 1" orifice
  • Max inlet pressure: 30 PSIG (2.068 Bar)
  • Maximum emergency outlet: 15 PSIG
  • Max temperature range: -20˚ F to 180˚ F (-29˚ C to 82˚ C)
