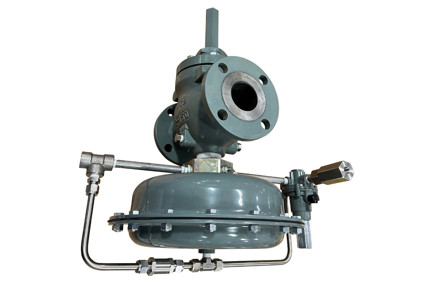

Belgas P1098 Regulator - 2'' Ports, 2" Connections, 2-20 PSI Pilot, 60 PSI Spring

The BelGAS P1098 pressure regulator is a versatile and precise device designed for large-volume gas use. It features a pilot-operated system for quick and accurate responses, with field-exchangeable pilot assemblies and an elastomer seat disk for a bubble-tight shutoff. Its two-path pilot system and large area actuator diaphragm allows for fast and accurate response to changing flow conditions.

Details:

• 2" port size
• 2" connections
• 2-20 PSI pilot model and outlet range
• CF8M linear cage
• Stainless steel travel indicator fittings
• 60 PSI spring
• 40 actuator (max outlet 75 PSIG)
• Max temperature rating: -20 to 180° F (-29 to 82°C)
• High flow pilot operated regulator
• Liquid or gas service
• Loading pressure bleeds downstream – no atmospheric relief
• Nitrile elastomers
• No pilot installed
• Steel body
